Volvo Penta D1-30 · Interactive 3D · Free
A free, interactive 3D guide to the Volvo Penta D1-30 marine diesel, made for sailboat owners. Find the fault, look inside the parts, follow the service schedule — and hear the engine run.
Shaft (MS15A) and saildrive (130S) · Runs in your browser
What's inside
Answer yes/no questions, or describe the problem in your own words and Claude AI picks the starting point. Then work through the checks in the order a mechanic would do them — with each part shown on the 3D engine.
17 symptomsCut-open views of the impeller, fuel filter, heat exchanger, mixing elbow and saildrive leg. Compare a healthy part with a faulty one — a worn impeller, or blue mussels in the saildrive.
Healthy vs. faultyThe maintenance schedule from the operator's manual, step by step — 38 tasks, plus 31 tips from owners.
38 tasks · 31 tipsA live engine simulation with the real sound of Marius' own D1-30. Trigger 27 faults and read them off a Volvo-style helm panel.
27 faultsLet a narrator walk you through the fuel, drive and cooling systems.

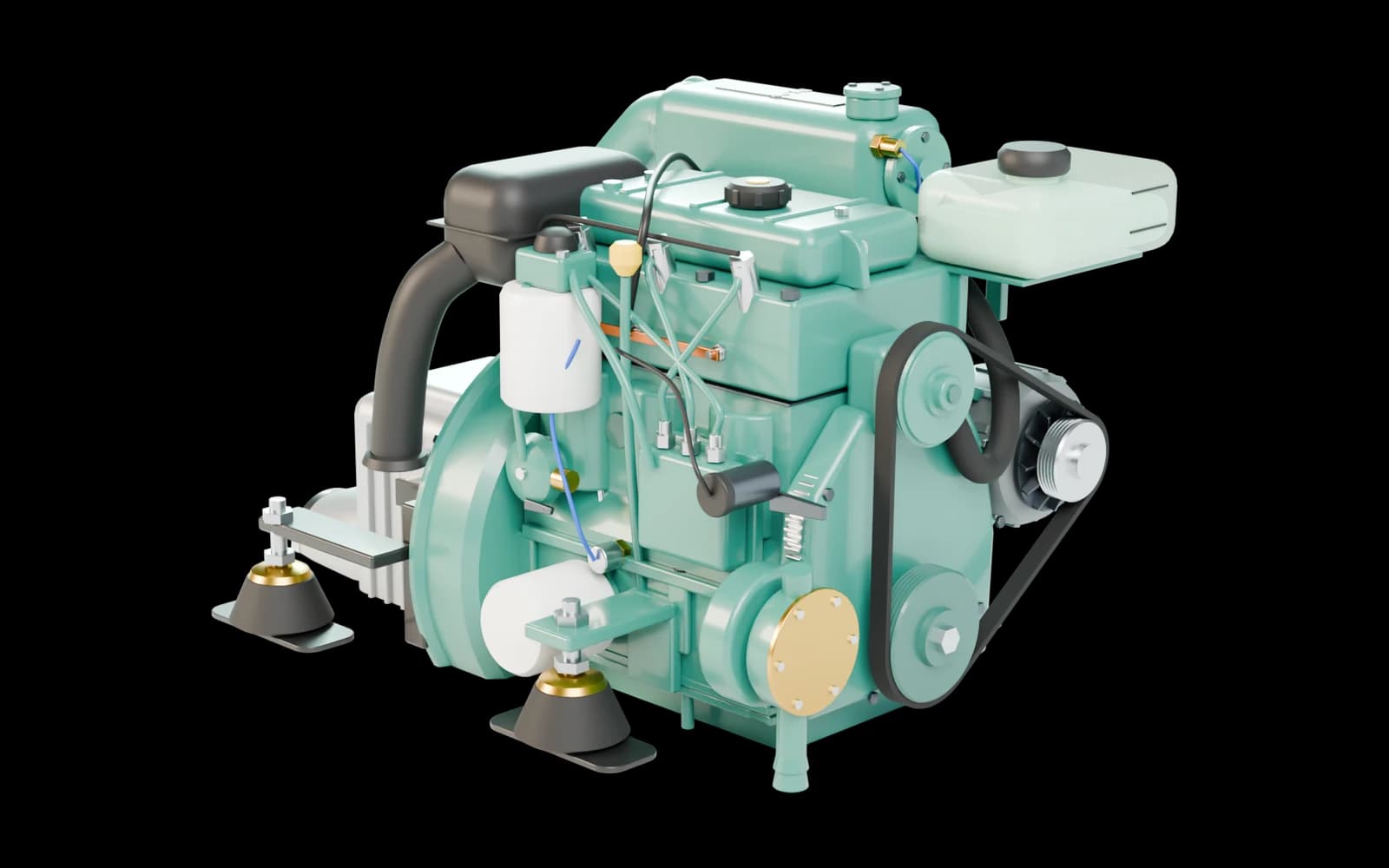

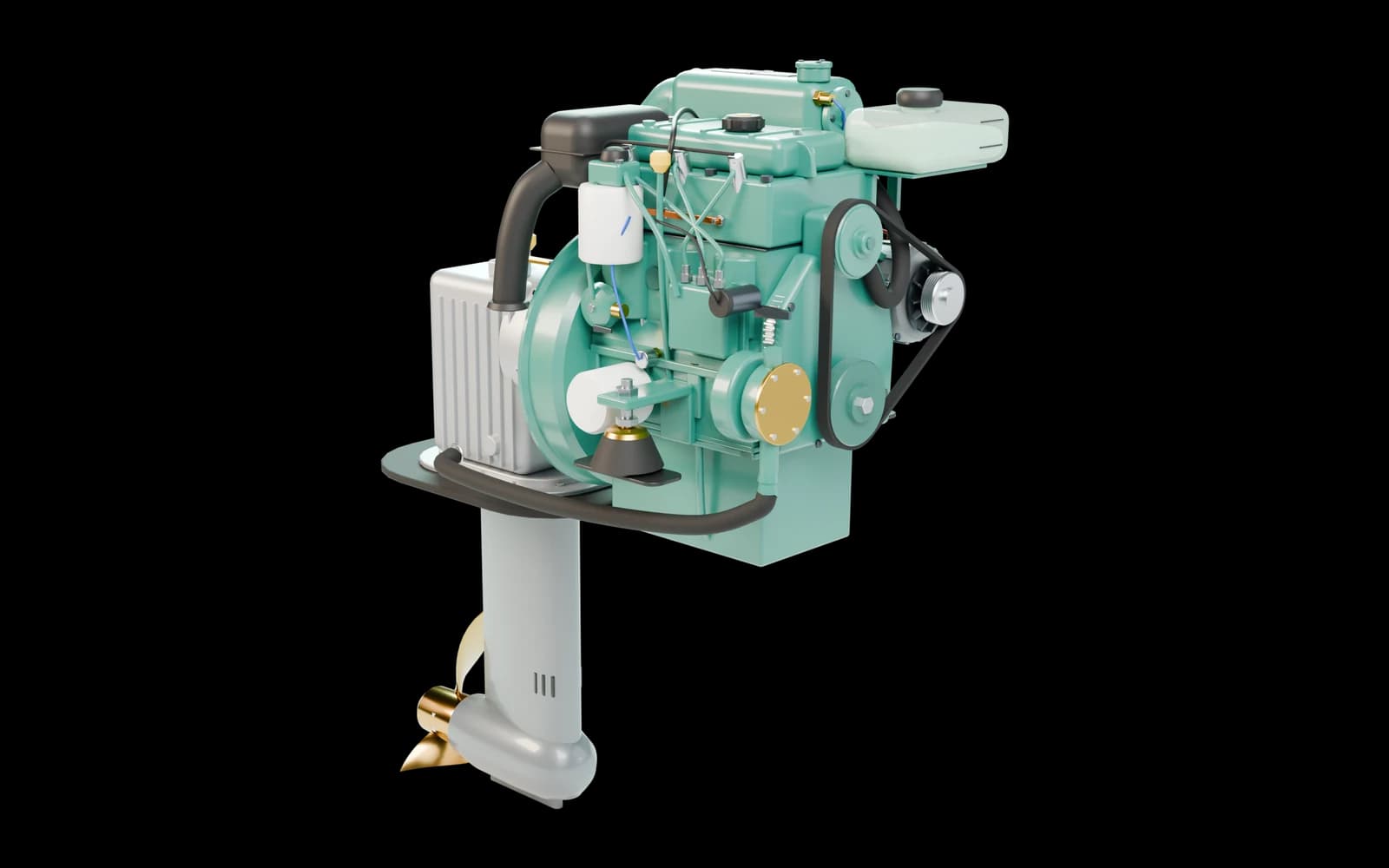

3 systemsBoth drive variants
The guide covers both ways the D1-30 is installed. Choose your drive when you open the app.
Made for the community
D1 Engine Guide was made for the Facebook group «Volvo Penta D1 owner's – repair and discussion». Join the group to ask questions and share what you find.
Visit the Facebook groupIndependent community tool
D1 Engine Guide is not affiliated with or endorsed by Volvo Penta. The names Volvo Penta and D1-30 are used only to describe which engine the guide covers.
